UFO

Click on pic to enlarge

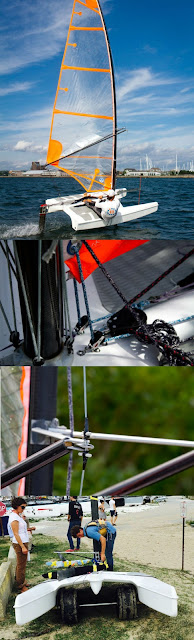

The UFO has landed! The UFO is a modern design hydrofoiler, based on recent technological advances in sailing hydrofoils, that allows anyone to fly above the water. More stable than the International Moth, with a simple rig, and a set of fully retractable foils, all for under $8000 USD. The UFO provides the easiest and most affordable foiling experience, while maintaining a one-design philosophy creating close and exciting racing on foils!

- Unique hull and rig designs
- Stable on and above the water
- Small footprint for easy boatyard storage
- Takeoff from about 8 knots of wind (depending on ones body weight)
- Fast, fun, easy to control foiling
- Designed and built in the USA
- Under $8000 USD
- Compact for storage and mass transport
- Lightweight for easy maneuverability
- Solid, nearly dent-proof, hull


BOAT SPECIFICATIONS

- 105 inch waterline length + 15 inch rudder gantry
- 67 inch beam
-110.2 lbs/50 kg all-up ready to sail weight
- 83.9 ft/7.8 sq. meter sail
- Steve Clark design


The price includes a full, ready-to-sail UFO including:
- Hull fitted out with all the lines and hardware
- Complete spar set fitted with rigging and hardware
- North Sails-made UFO sail
- Mainfoil assembly with wand rigging
- Rudder foil assembly including tiller and extension
- Beachcat style launching dolly
- Price $7600 USD (this does not include shipping, packaging, or applicable duties, applicable tax may apply depending on the state.

We are accepting deposits for build slots with target delivery early 2018. Emails us for exact details for your personal UFO at funtosail@gmail.com

A down payment of $2000 USD is required for build slot reservation and the remaining balance is due once your UFO is ready to be shipped. We accept wire-transfer or checks, the information for which will be provided when we receive an order.

BOAT DETAILS

The UFO is a novel implementation of recent technological advances in sailing hydrofoils to radically increase the fun factor of a simple affordable sailing toy. By mating the highly refined wand driven centerline T-foil system, tested and proven in the International Moth class, with a simple tunnel-hulled catamaran hull shape, the UFO offers the otherworldly joy of zipping around up in the air. All without any of the complexity, fragility, or cost found in today’s foiling boats. It’s about simplifying and increasing consistent access to the flying experience.

The UFO is:

- Simple
- Beach launchable
- Robust
- Sailable in shallows at all points of sail
- Safe
- User friendly
- And flies constantly in 8 knots of breeze and above (depending on ones body weight)

What’s in it?

Hull:

Simplicity, durability, and function were the core criteria in the development of the UFO. The hull is constructed of two unified top/bottom moldings for maximum build consistency. With vinylester infused, Soric cored, fiberglass structure, with carbon fiber reinforcement in the beams. The combination of vinylester and Soric notably render the hull outstandingly rugged and seemingly impossible to dent.

The hull is remarkably light, weighing in at 70 lbs (31.5kg), which makes it easy to handle and transport. The flat bottoms of the hulls make car top transport easy. With the addition of a conventional beach-wheels style dolly the UFO becomes exceptionally easy to move around, whether on the beach, in the launch, to another venue, or even to another country.

While the UFO is a ‘sit on’ rather than ‘sit in’ boat, its EVA foam deck padding makes it comfortable for the knees, shins, and posterior. The deck rigging layout is as simplified as possible, featuring no long tails, take-ups or needless bits of line. Fulcrum’s rigging philosophy is “the more sophisticated the system, the more likely it is to snag and ultimately decay”.

Rig:

Our unique jumper-strut wish-boom rig provides safety, performance, and simplicity. The remarkable speed of hydrofoils is driven by removing the hull from the drag of the water; conversely, regaining contact with the water while flying leads to rapid deceleration. Learning to fly has resulted in some nasty bruises and cuts in other foiling boats as the boat rapidly slows and the sailor continues forward into the shrouds, wing bars, or withdrawn foils. Keeping the “splashdown path” clear for the sailor was a must in the UFO design. So while the UFO rig takes advantage of the benefits of stays, they play no part in securing the rig to the boat, instead reversing back to the deck collar at the mast base, clear of the splashdown path. Further, the jumper stay arrangement provides a broad tuning range of rig stiffness, enabling the boat to be powered up or de-powered to taste.

The mast collapses into three parts and is made of carbon fiber and a carbon-glass mix, depending on the stiffness requirements of each segment. The boom sprits are also made of a carbon glass mix for stiffness and durability. The fully battened mylar sail is made and designed by North Sails, and is raised with a halyard rather than capsizing the hull. The sail endplates to the deck for increased performance as demonstrated by C-class and America’s Cup boats. For storage and transport the wishboom collapses easily to pack with the mast sections.

Foils:

The centerline T-foil arrangement has been the core foiling technology for the International Moth class since the early 00’s. As a result, it currently stands alone for its thousands of hours of testing and refining, and its countless iterations of development to the present day. It is the most proven hydrofoil technology in existence and thus forms the basis for the UFO’s foiling system.

The UFO flies on a pair of centerline T-foils, made from a hybrid foam cored carbon/glass composite and fixed to the bottom of the mainfoil and rudder’s struts. The combination of these foils and the tunnel hullshape allows for full retraction of the horizontal elements between the hulls. This makes the boat very easy to launch without worrying about damaging the foils, or even for the UFO to be landed “beach-cat style” straight on the sand.

The mainfoil has a control flap along its trailing edge, which is driven by a wand at the bow. The wand detects the distance of the hull from the surface and automatically corrects the flap position, controlling flight and keeping it within the range set by the sailor. “Ride height”, the desired elevation of the hull above the water, is set by changing the extended length of the wand as a ‘set and forget’ tuning. Ride height can be set low to keep the hulls close to the water and assure a certain degree of safety and stability, a sailing mode nick-named “training wheels” by the design team. The ride height can then set incrementally higher as one’s comfort with flying high and fast increases. The rudder foil possesses no active controls, though it can be tuned with a ‘set and forget’ built-in angle of attack adjuster, a feature also available on the mainfoil. This enables the foils to be adjusted for the wind conditions of the day.
Again for more info email us at funtosail@gmail.com
